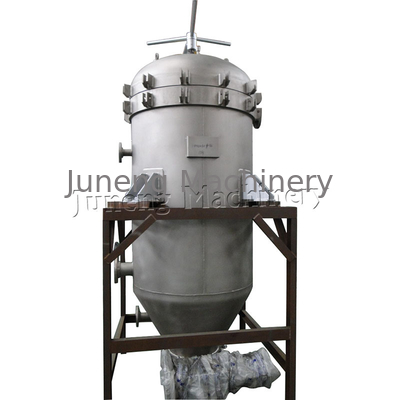

Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area
| Lieu d'origine | Jiangsu, Chine |
|---|---|
| Nom de marque | Juneng |
| Quantité de commande min | 1 set |
| Prix | $11,940-21,343 / set |
Contactez-moi pour des aperçus gratuits et des bons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Structure | Filtre vertical de feuille | Matériel | Acier inoxydable 304 |
|---|---|---|---|
| Capacité | 4-6T/H pour l'huile | Zone de filtration | 20m2 |
| Température de conception | 100-150 ℃ | Pression de conception | 0,6 MPA |
| Volume de produit de filtration | 400L | Pression de travail | 0,1-0,4 MPA |
| Température de travail | ≤150 ℃ | Volume de machine | 1680L |
| Matériau foliaire | 316L | Épaisseur de feuille | 1,8 millimètres |
| Type de soupape | DN 400 VALVE BUTHERFLY | Matériau de siège de soupape | NH-S |
| Pression de l'actionneur pneumatique | barre 5,5 | ||
| Mettre en évidence | Stainless Steel 304 vertical pressure leaf filter,20m2 filtration area pressure leaf filter,Vertical pressure leaf filter with warranty |
||
Description de produit
NYB High Efficiency Plate Type Pressure Leaf Filter with Insulate Jacket
Product Specifications
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| After-sales Service | Field maintenance and repair service |
| Name | Pressure leaf filter |
| Structure | Vertical leaf Filter |
| Material | Stainless Steel 304 |
| Capacity | 4-6T/H for oil |
| Filtration area | 20m² |
| Color | Green or blue |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
Product Overview
The NYB high efficiency plate hermetic filter is a high-performance, energy-saving filtration system designed for fully enclosed operation. This advanced equipment finds applications across multiple industries including chemical processing, petroleum refining, paint production, food processing, and pharmaceutical manufacturing.
Technical Specifications
| Model | Filtration area (㎡) | Filter cake volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 0.1-0.4 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 0.1-0.4 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 0.1-0.4 | ≤150 | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 0.1-0.4 | ≤150 | 1300 |
| NYB-20 | 20 | 400 | 4-6 | 0.1-0.4 | ≤150 | 1680 |
Key Features
- Eliminates need for filter cloth and paper, significantly reducing operational costs
- Fully enclosed system prevents material loss and ensures environmental compliance
- Vibration-assisted residue removal reduces labor requirements and enables continuous operation
- Pneumatic valve discharge system minimizes worker fatigue
- Capable of activated carbon or bleaching filtration, serving as a complete replacement for traditional plate and frame filters

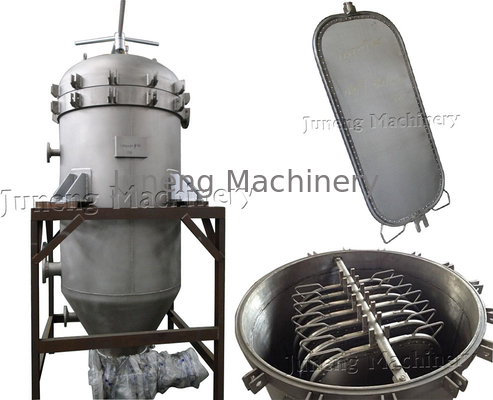

Filter Leaf Specifications (Example: NYB-12)
Configuration: 11 filter leaves provide 12 sqm filtration area
Construction: Heavy box channel (1.8mm) made from 316L stainless steel
Features: Topside reinforcement with vibrator fork (SS 316), bottom outlet nozzle with Viton rubber O-ring seal
Butterfly Valve Specifications (Example: NYB-12)
Type: DN 400 wafer type butterfly valve for dry cake discharge
Materials: NH-S seat material (rated to 150°C)
Actuation: Pneumatic double-acting actuator with 5.5 Bar air supply
Certifications
Service & Support
Pre-Sales Service
- Comprehensive inquiry and consulting support
- Sample testing services available
- Factory visit opportunities
After-Sales Service
- Installation and operation training
- Overseas engineer support available
- Prompt response within 2 hours for domestic service requests
- On-site problem resolution until customer satisfaction
About Juneng Group
Established in 2006, Juneng Machinery (China) Co., Ltd. specializes in the research, development, production, and distribution of filtration and separation equipment. With four strategically located factories in Nanjing and Yixing City, we maintain rigorous quality control and exceptional customer service standards.
Our product portfolio includes advanced filtration systems, separators, decanter centrifuges, and pumps, all certified to CE, ASME U, and ISO 9001 standards. Our solutions serve domestic markets across China and export to numerous countries including the USA, Germany, Japan, and Southeast Asian nations.
Quality Assurance
- Factory audit available prior to purchase
- Material inspection during manufacturing process
- Strict compliance with technical requirements
